Name: Wendougee SDragon-SAT 2-Group Commercial Espresso Machine
Brand: Wendougee USA
SKU: sku-42350408695883

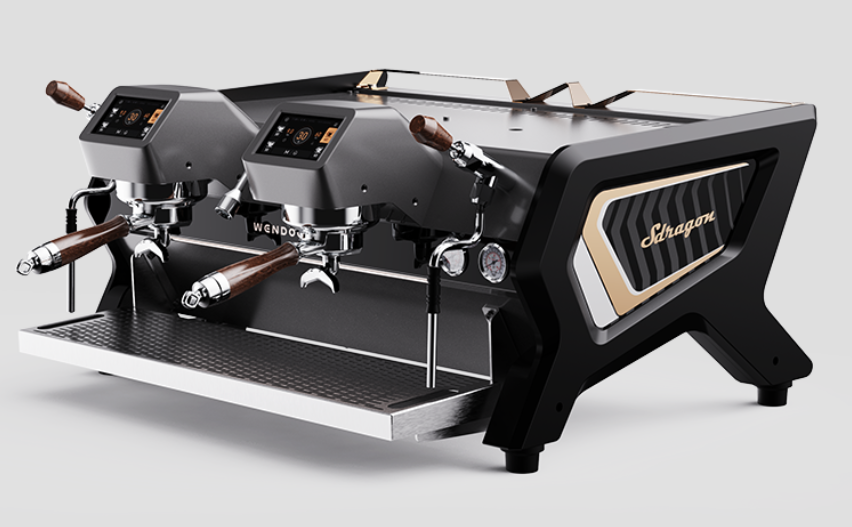

Wendougee SDragon-SAT 2-Group Commercial Espresso Machine

Photo 1 / 6

Confirm the exact configuration, availability, and installation requirements before ordering.

Talk with our team

Color

Black

White

See shipping details for your location

Warranty coverage and terms

In stock, ready to ship
Backordered, shipping soon

Availability: Coming soon. Use the availability notification on this page for updates. Confirm the US configuration, price and delivery timing before placing an order or arranging installation.

SDragon: two groups with programmed beverage preparation

The standard two-group SDragon combines saturated brewing groups with volumetric dosing and separate brew and steam capacity. It provides a commercial workflow in which programmed portions let the operator coordinate shot preparation with the rest of the drink.

Volumetric control and beverage weight are different measurements

A volumetric program controls a measured water portion. It does not directly weigh the espresso in the cup. Coffee absorption and recipe changes still affect final yield, so check beverage weight when setting the program and after significant grind or coffee changes.

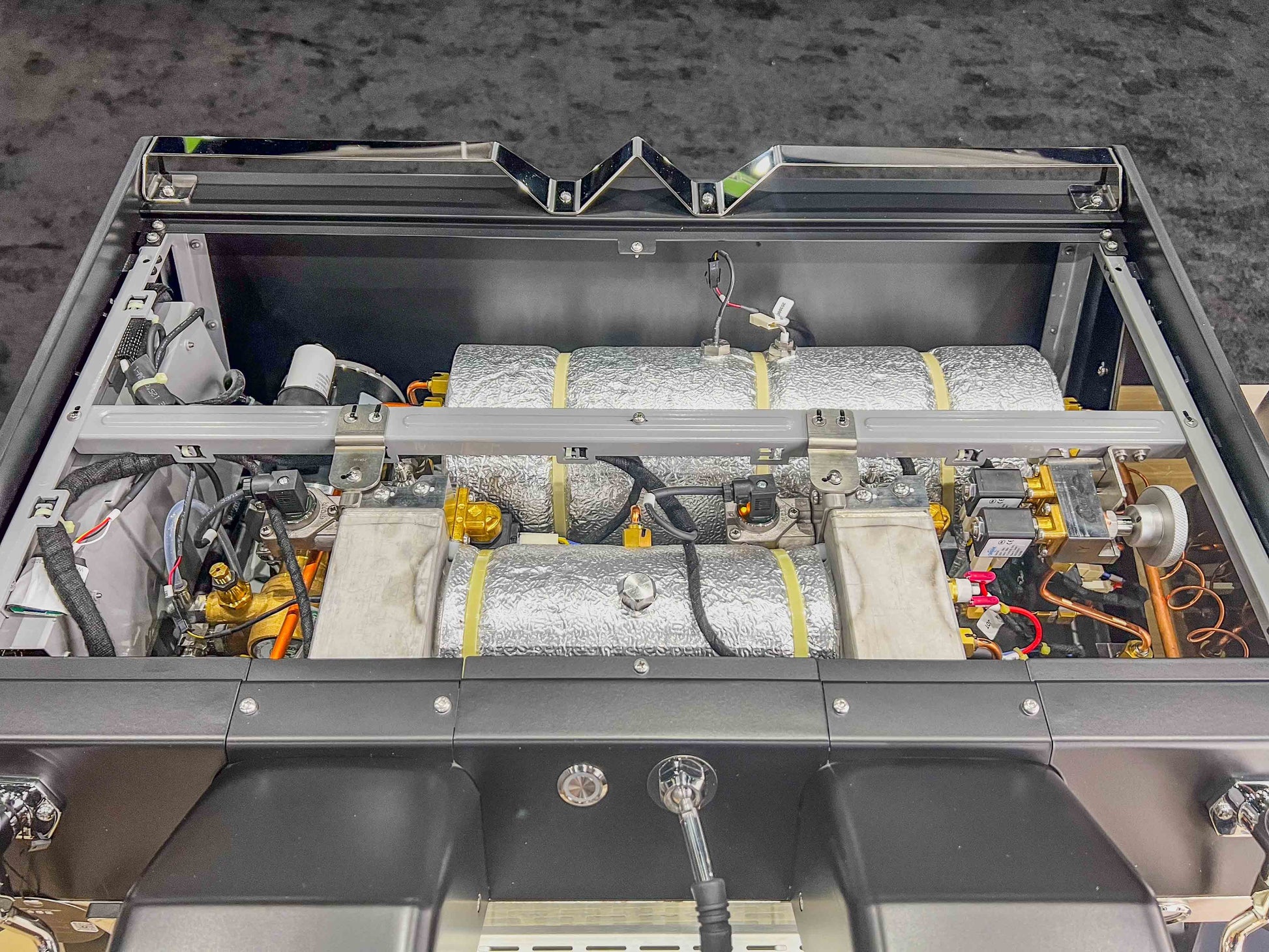

Saturated groups and independent boiler control

The standard SDragon manufacturer chart lists 8.7 L of steam capacity and a 3.5 L brew boiler, with independent PID control. Two 4.3-inch touchscreens provide access to brewing information. Its commercial pump and two-group format support parallel preparation at the station.

Model family	Standard SDragon two group; not SDragon Pro
Groups	Two saturated groups
Brew operation	Volumetric with manual operation
Boilers	8.7 L steam + 3.5 L brew, manufacturer chart
Temperature control	Independent PID
Displays	Two 4.3-inch touchscreens
Manufacturer dimensions	76 cm W × 67 cm D × 39 cm H
Manufacturer weight	70 kg
Manufacturer chart power	4,800 W at 220–240 V; confirm US cut sheet

Older regional listings show different dimensions and wattage. The figures above identify the standard manufacturer chart, not a finalized US installation specification. SDragon Pro has its own size and additional adjustment features; its chart should not be substituted here.

Plan the installation around the supplied machine

Obtain the final US cut sheet before specifying the circuit, counter or plumbing. Verify voltage, phase, current, connection method, water treatment, drainage and service clearance with your installer. Manufacturer family charts describe multiple builds and are not a substitute for the delivered machine’s nameplate.

Compare the SDragon family

This is the standard SDragon-SAT two-group model in Black or White. For a single extraction position, see the SDragon Single Group. For the version with an adjustable flow-limiting valve, see the SDragon-SAT Pro.

Questions about this model

Does volumetric mean grind-by-weight or brew-by-weight?

No. It describes water measurement for the brewing program. Use a scale to verify the finished beverage mass.

Does SDragon have the Pro flow-adjustment features?

Do not assume so. Standard and Pro are separate configurations.

What if I want a scale-equipped commercial machine?

Compare DMantis and the configured DMecha options, then confirm the actual scale and stop modes supplied.

Product literature

SDragon Product Literature (PDF)

Manufacturer literature may show international or optional configurations. Use the supplied US model’s specifications for installation.

Shipping and delivery requirements vary by product, destination, and order type. Review the product-specific notes on this page and our shipping policy, return and cancellation terms, and warranty policy before ordering.

Preorder estimates appear in the product description and can change. Contact our team if you need help confirming requirements.
